Ukse videotelefon
4 wire system 7" indoor monitor, touch buton operation 32G large capacity storage supported. Support 1-4 apartments, RFID(optional) IP65 waterproof outdoor panel with IR night vision
Toote tutvustus
The 4 wire door video phone is a regular 4 wire video intercom system. It is for villa house(from 14 families), support two pieces extra CCTV cameras and alarm sensors. This KIT with 110 degrees view angle outdoor unit and 7" monitor. Outdoor station and indoor monitor use a 4 wire cable connect together, built-in power supply and external power adaptor for optional.
The outdoor panel is IP65 waterproof, IR LED night vision, 800TVL resolution, built-in relay support remote unlock. Indoor monitor with multiple language graphic UI. Built-in memory can save 80 photos even not insert SD card. Surface mount and flush mount installation for optional, easy to install. One indoor monitor can connect two pcs outdoor panel.

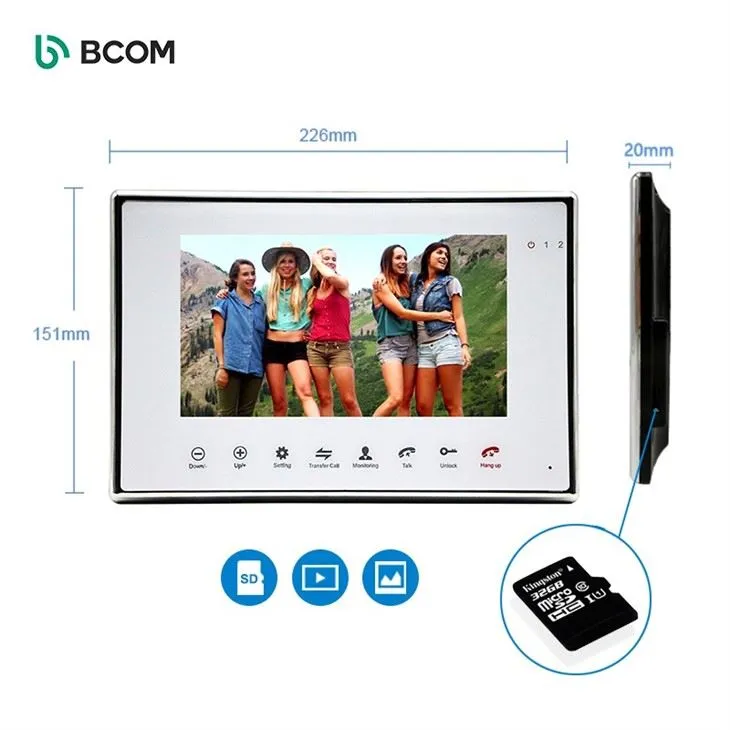

Indoor monitor has black, white color for optional, support max.32GB SD card, graphic UI.
Toote spetsifikatsioon
Mudel | 84714EM pluss 84214-2 |
Videosignaal | CVBS |
MicroSD-kaart | max 32GB (ei kuulu komplekti) |
Motion Detection | JAH |
Jäta sõnum | Jah |
Liides | 4 PIN pistik |
Unikaalne funktsioon | Ühildub Commaxi uksetelefoniga |
Toote eelised:
1. Kogu süsteemiga saab ühendada kuni 2 välisseadet pluss 4 sisemonitori ja 2 CCTV kaamerat
2. 7" indoor monitor with touch button operation
3. Toetatud 32G suure mahutavusega salvestusruum.
4. Erineval kellaajal saab määrata erineva helina helitugevuse
Süsteemi skeem:
monitor pluss väljas 4 juhtmega kaabliühendusega

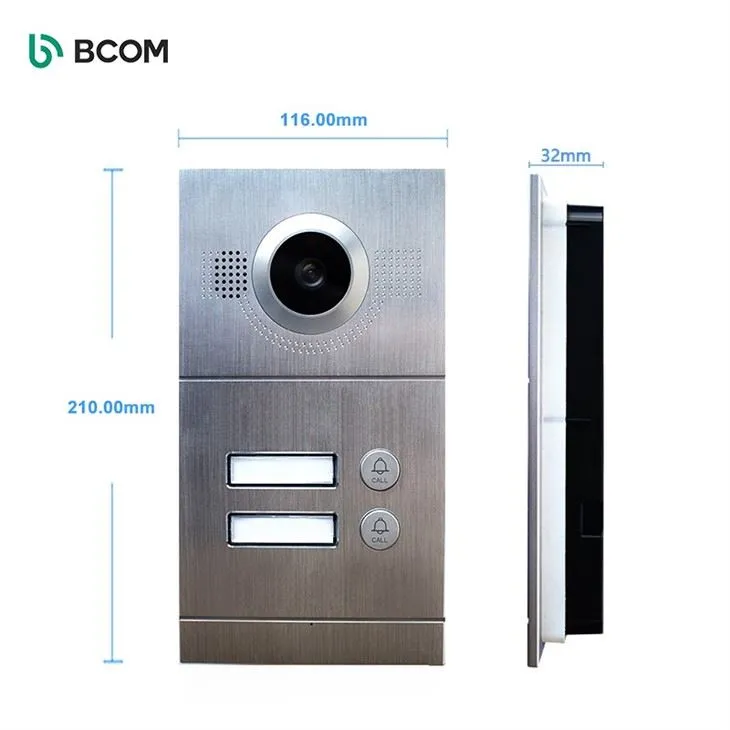

Välisseadme üksikasjad

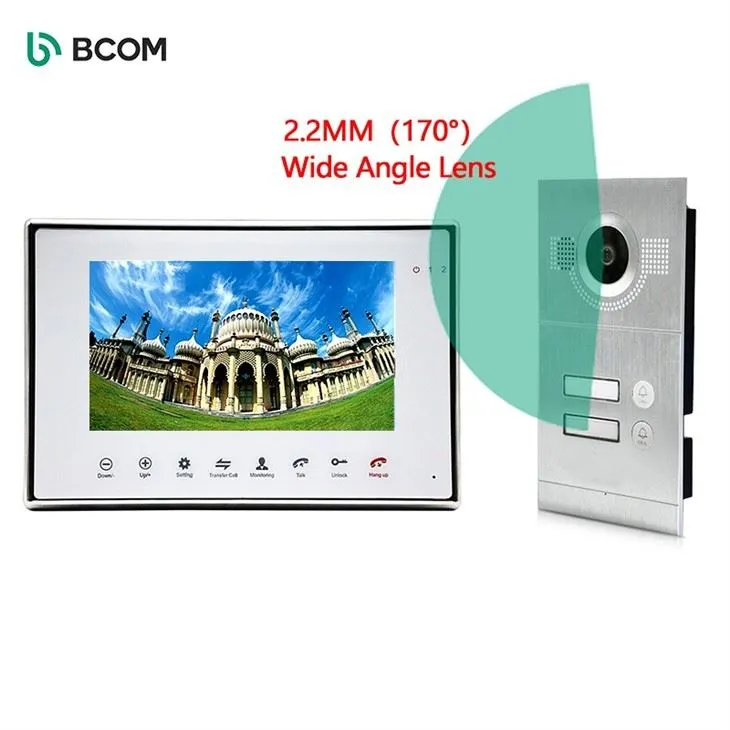

1. Laia vaatenurgaga välisseade
2. Day and night vision with IR LED
3. IP65 veekindel
Pakkimine:
10 Set/CTN standardina.
Aksessuaarid:
Toiteadapter pluss manuaal pluss kruvikott pluss paigaldusplaan
Märkus: ülaltoodud tarvikud on standardsed, seda osa saab kohandada vastavalt kliendi soovile.
3. Kuidas seda toodet kasutada?
Commax door phone outdoor and indoor connect together with 4 wire cable, indoor monitor connect to power. outdoor station press call button, indoor monitor answer the call,Unlock or reject unlock outdoor. End conversation.
Siseruumide monitor | Mudel | 84715EM |
Monitor | 7" TFT LCD video doorphone | |
Toote tüüp | CVBS video sisend | |
Resolutsioon | 800(H)3(RGB)480(V) | |
Mälu | Toetus max. 32GB SD kaart | |
Intercom režiim | Kahesuunaline-käed-vabad{1}}side | |
Vestluse kestus | 120s | |
Toimimisviis | Puudutage nuppu | |
Energiatarve | 400mA max. | |
Toiteallikas | Väline toide DC12V | |
Toetus | 2 call panerl plus 4 indoor monitor plus 2 CCD camera 2 alarm | |
Materjal | Akrüültraadi tõmbamise kest | |
Töötemp | -10kraadipluss 60kraadi | |
Paigaldamine | Pinnakinnitus | |
Standard | PAL/NTSC |
